GENERAL
Boat Type
Power Catamaran
Hull Type
Catamaran (Twin Hull)
Hull Material
100% Fiberglass + Composites
Hull Construction
Hand Lamination
Hull Warranty
5 years
DIMENSIONS
LOA / Beam / Draft
16’9” / 5'7" / 10"
WEIGHT
Dry Weight (Hull - approx)
485 lbs
Dry Weight (w / engines / max HP- approx)
730 lbs
Fully Rigged Weight (approx)
900 lbs
CAPACITIES
Maximum Persons Capacity
4 Persons / 600 lbs
Fuel / Water Capacity
13 gal
PERFORMANCE
Engine Range & Max Horsepower
40 – 60 HP
Fuel Type
Gasoline
Cruise
20 - 22 mph (Mercury 60 HP)
Top Speed
28 mph @ 4,000 rpm
Fuel burn @ cruise
3.0 gal/h
Efficiency @ cruise
6.0 mpg
Estimated Range @ Cruise
~80 miles (70 NM)
DECK
Seating Capacity
3 persons
Freshwater & Raw Water Washdown
No
Livewells
-
Fish Boxes - Cockpit
-
Storage compartment - Bow
40 gal total (2 x 20 gal)
Storage compartment - Under Bow seating
10 gal total (2 x 8 gal)
Total storage capacity
50 gal
Bow table with integrated storage
No
Leaning post with integrated tackle storage
No
Helm seat with tackle storage and sliding drawer
No
Rod Holders
-
Swim Platform & Ladder
3-step telescoping Stainless Steel
Cockpit Drains
-
Flooring
EVA marine deck
CONSOLE
Helm Electronic Capacity
Up to 1 x 12"
Multi-bank battery system with dedicated switches
1 battery
Dedicated switch panel for lights system
2 switches
Dedicated switch panel for water system
2 switches
Marine-grade electric horn
Yes
Fire Extinguisher Storage
Yes - Dedicated
LED USCG-compliant anchor lights
-
LED USCG-compliant navigation lights
Yes
LED Integrated courtesy lighting
Yes
HARDWARE
Windshield
High-strength acrylic
Gunwale Padding
-
Marine-grade PVC rub rail
Yes

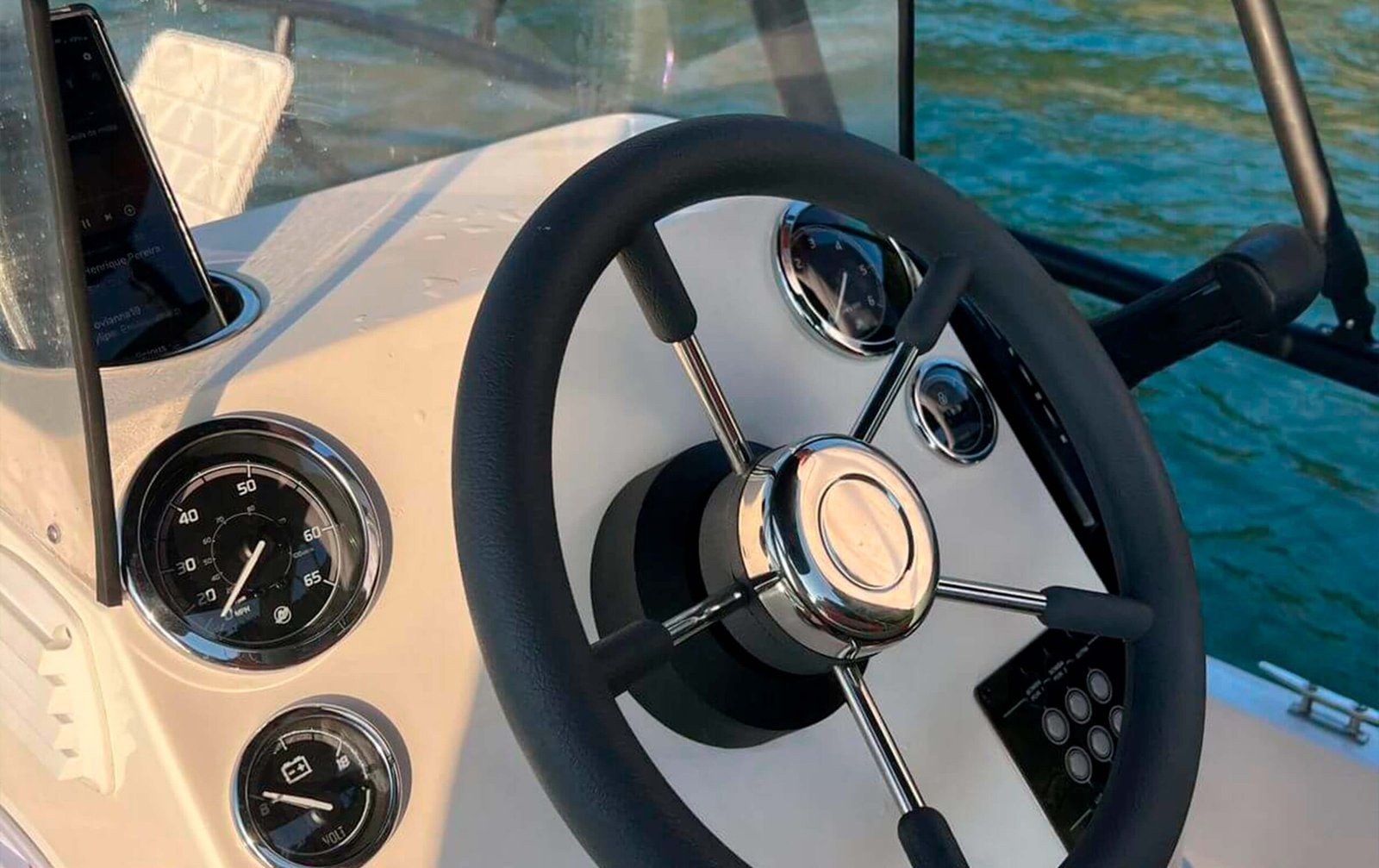

Stainless Steel Steering Wheel
Yes
Heavy-Duty Stainless Steel Bow Eye U-Bolt
3 x 1/2"
Heavy-Duty Stainless Steel Pop-Up Cleats
5 x 6"
KEY FEATURES
Lightweight 17-foot Cat platform
Efficient 60 HP performance
Easy to handle, tow, launch, and operate
21 mph cruise / 29 mph top speed
Perfect for new boaters, fishing, and everyday use
Projetado para oferecer versatilidade, o 170CAT proporciona uma estabilidade notável, uma navegação suave e a flexibilidade necessária para se adaptar a qualquer aventura. De águas interiores tranquilas a ambientes costeiros em mar aberto, ele foi construído para ajudar você a aproveitar ao máximo cada dia na água.
ESPECIFICAÇÕES TÉCNICAS
GENERAL
Boat Type
Power Catamaran
Hull Type
Catamaran (Twin Hull)
Hull Material
100% Fiberglass + Composites
Hull Construction
Hand Lamination
Hull Warranty
5 years
DIMENSIONS
LOA / Beam / Draft
16’9” / 5'7" / 10"
WEIGHT
Dry Weight (Hull - approx)
485 lbs
Dry Weight (w / engines / max HP- approx)
730 lbs
Fully Rigged Weight (approx)
900 lbs
CAPACITIES
Maximum Persons Capacity
4 Persons / 600 lbs
Fuel / Water Capacity
13 gal
PERFORMANCE
Engine Range & Max Horsepower
40 – 60 HP
Fuel Type
Gasoline
Cruise
20 - 22 mph (Mercury 60 HP)
Top Speed
28 mph @ 4,000 rpm
Fuel burn @ cruise
3.0 gal/h
Efficiency @ cruise
6.0 mpg
Estimated Range @ Cruise
~80 miles (70 NM)
DECK
Seating Capacity
3 persons
Freshwater & Raw Water Washdown
No
Livewells
-
Fish Boxes - Cockpit
-
Storage compartment - Bow
40 gal total (2 x 20 gal)
Storage compartment - Under Bow seating
10 gal
Total storage capacity
50 gal
Bow table with integrated storage
No
Leaning post with integrated tackle storage
No
Helm seat with tackle storage and sliding drawer
No
Rod Holders
-
Swim Platform & Ladder
3-step telescoping Stainless Steel
Cockpit Drains
-
Flooring
EVA marine deck
CONSOLE
Helm Electronic Capacity
Up to 1 x 12"
Battery bank system with dedicated switches
1 battery
Dedicated switch panel for lights system
2 switches
Dedicated switch panel for water system
2 switches
Marine-grade electric horn
Yes
Fire Extinguisher Storage
Yes
LED USCG-compliant anchor lights
-
LED USCG-compliant navigation lights
Yes
LED Integrated courtesy lighting
Yes
HARDWARE
Windshield
High-strength acrylic
Gunwale Padding
-
Marine-grade PVC rub rail
Yes
Stainless Steel Steering Wheel
Yes
Heavy-Duty Stainless Steel Bow Eye U-Bolt
3 x 1/2"
Heavy-Duty Stainless Steel Pop-Up Cleats
5 x 6"
KEY FEATURES
Lightweight 17-foot Cat platform
Efficient 60 HP performance
Easy to handle, tow, launch, and operate
21 mph cruise / 28 mph top speed
Perfect for new boaters, fishing, and everyday use
Construído com base em um casco de catamarã estável, o Murano 170CAT oferece versatilidade excepcional para pescadores, exploradores e famílias. Seu layout espaçoso, sua capacidade de navegar em águas rasas e a sensação de segurança que proporciona tornam cada passeio mais agradável, não importa para onde a aventura o leve.
- Casco de catamarã estável para maior conforto e confiança
- Convés aberto e espaçoso, com espaço para equipamentos, passageiros e apetrechos de pesca
- Capacidade de navegação em águas rasas para acessar locais de pesca de difícil alcance
- Layout versátil projetado para pesca, lazer e navegação no dia a dia
